High-Precision Medical Components
Precision Plastic Medical Parts: Advanced Materials & Manufacturing Solutions
Product Specifications

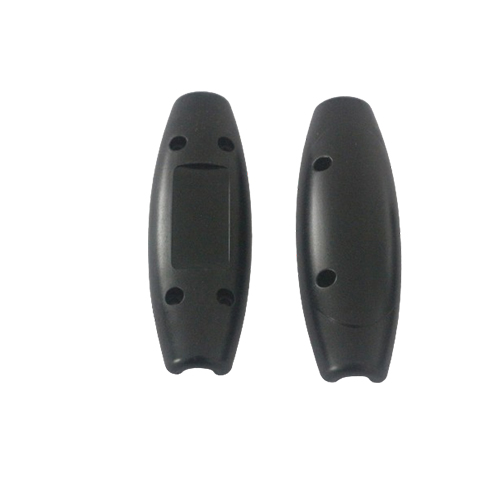

Part Name: Plastic Medical Components
Materials:
• ABS+PC (Impact-resistant for surgical tools)
• Medical-grade PC (Transparent for fluid visualization)
• PA6+30%GF (Sterilizable for implantable device housings)
• Optional: USP Class VI-certified resins for long-term tissue contact
Tooling & Production
Mold Configuration:
Runner Systems:
1-2 cavity molds for medium-volume production
Core/Cavity Steels:
• 1.2344 (HRC 52-54 for 500k+ cycles)
• 1.2767 (High polish for optical clarity)
• Superplast 400 (For micro-textured surfaces)
Hot Runner: Yudo needle-valve for gate-free surfaces
Cold Runner: Tunnel gates for easy degating
Critical Tolerances & Finishes
Dimensional accuracy: ±0.05mm (ISO 2768 Fine)
Surface finishes:
• SPI A1 (Mirror polish for fluid pathways)
• EDM texture for grip surfaces
• Micro-abrasion for anti-glare surfaces
7 Key Advantages of Plastic Medical Components
1. Lightweight Ergonomics
Medical-grade plastics reduce device weight by 40-60% vs. metal alternatives, decreasing user fatigue during prolonged procedures. Our gas-assist molded PA6+30%GF components maintain strength at 30% lighter weight.
2. Engineered Durability
Withstands 1,000+ autoclave cycles (134°C/273°F) without deformation
Impact resistance: 6 ft. drop-test certified for handheld devices
3. Cost-Effective Manufacturing
Family molds allow simultaneous production of related components
Overmolding eliminates assembly steps for multi-material devices
4. Sterilization Compatibility
Validated for all major methods:
| Method | Material Suitability |
|---|---|
| Autoclaving | PC, PPSU |
| Gamma Radiation | PEI, PEEK |
| EtO Gas | ABS+PC, PA6 |
5. Design Versatility
Micro-molding for components <0.5g with ±0.01mm tolerances
Living hinges in PP for single-piece assemblies
6. Clinical Transparency
Optical-grade PC with >92% light transmission for:
• IV fluid monitoring
• Endoscope lens housings
• AR/VR surgical navigation components
7. Chemical Resistance
Resists:
• Isopropyl alcohol (100% concentration)
• Hydrogen peroxide vapor
• Glutaraldehyde-based disinfectants
Industry-Specific Applications
Diagnostic Equipment
3D-printed PCR test housings with integrated snap fits
Ultrasound probe grips with antimicrobial additives
Surgical Instruments
Single-use arthroscopy shavers with laser-marked gradations
RFID-embedded trays for sterilization tracking
Drug Delivery Systems
Autoinjector bodies with tamper-evident features
Wearable pump housings with moisture barrier coatings
Quality Assurance
ISO 13485:2016 certified production
Batch-level documentation including:
• Material certificates (USP, FDA 21 CFR)
• First-article inspection reports
• Sterilization validation data
Why Partner With Us?
Design-for-Manufacturing (DFM) analysis included
10-year mold lifespan guarantee
Cleanroom molding available (Class 8 ISO certified)
